外径 Outer diameter
6mm
-
材质 Material
塑料 Plastic
-
旋转方向 Direction of rotation
cc & ccw
-
齿轮箱回程差 Gearbox backlash
≤ 3°
含油轴承 Porous Bearing
-
轴向窜动 Axial endplay
≤ 0.3mm
-
输出轴径向负载 Radial loading on output shaft
≤ 0.3N
-
工作温度 Operating temperature range
-20 ～ +85℃
滚动轴承 Rolling Bearing
-
轴向窜动 Axial endplay
≤ 0.2mm
-
输出轴径向负载 Radial loading on output shaft
≤ 4N
-
工作温度 Operating temperature range
-20 ～ +85℃
齿轮级数 1
-
传动比 Transmission ratio
5/6
-
最大容许扭力(gf.cm max) Max rated torque of gearbox
250
-
瞬间容许力矩(gf.cm max) Instant torque of gearbox
600
-
齿轮箱效率 Gearbox efficiency
85
-
长度 Length
9.7
齿轮级数 2
-
传动比 Transmission ratio
23/31/41
-
最大容许扭力(gf.cm max) Max rated torque of gearbox
250
-
瞬间容许力矩(gf.cm max) Instant torque of gearbox
600
-
齿轮箱效率 Gearbox efficiency
73
-
长度 Length
12.1
齿轮级数 3
-
传动比 Transmission ratio
110/148/198/266
-
最大容许扭力(gf.cm max) Max rated torque of gearbox
250
-
瞬间容许力矩(gf.cm max) Instant torque of gearbox
600
-
齿轮箱效率 Gearbox efficiency
62
-
长度 Length
14.5
齿轮级数 4
-
传动比 Transmission ratio
531/711/952/1275/1708
-
最大容许扭力(gf.cm max) Max rated torque of gearbox
250
-
瞬间容许力矩(gf.cm max) Instant torque of gearbox
600
-
齿轮箱效率 Gearbox efficiency
55
-
长度 Length
16.9
-
马达(可选择) Motors(Optional)
空心杯电机、步进电机 Coreless motor, Stepper motor
-
电压(可选择) Voltage(Optional)
3 - 12V
-
输入速度 Input speed
≤ 30000rpm
-
电流 Current
100mA max
型号(Model):ZWBPD006006-5
-
额定转速(rpm) Rated Speed
1563
-
最高转速(rpm) Max Speed
6250
-
额定容许力矩(gf.cm) Max rated torque
250
-
瞬间容许力矩(gf.cm) Max instant torque
600
-
减速比 Reduction ratio
4.8
-

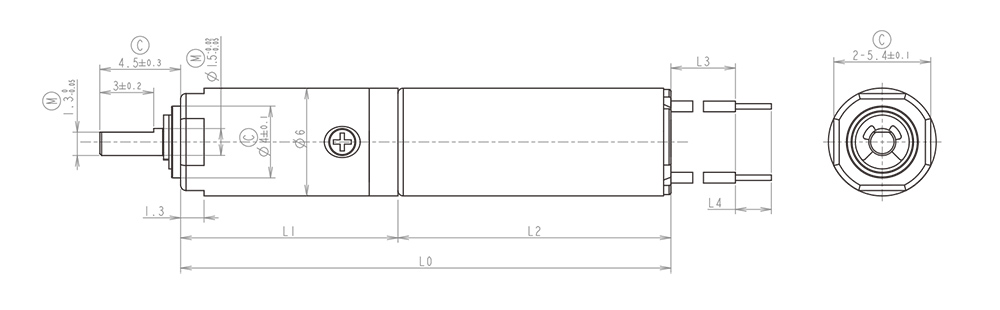

减速箱长L1(mm) Length
9.7
-
总长L(mm) Overrall Length
23.7
型号(Model):ZWBPD006006-6
-
额定转速(rpm) Rated Speed
1166
-
最高转速(rpm) Max Speed
4666
-
额定容许力矩(gf.cm) Max rated torque
250
-
瞬间容许力矩(gf.cm) Max instant torque
600
-
减速比 Reduction ratio
6.43
-
减速箱长L1(mm) Length
9.7
-
总长L(mm) Overrall Length
23.7
型号(Model):ZWBPD006006-23
-
额定转速(rpm) Rated Speed
326
-
最高转速(rpm) Max Speed
1302
-
额定容许力矩(gf.cm) Max rated torque
250
-
瞬间容许力矩(gf.cm) Max instant torque
600
-
减速比 Reduction ratio
23.04
-
减速箱长L1(mm) Length
12.1
-
总长L(mm) Overrall Length
26.1
型号(Model):ZWBPD006006-31
-
额定转速(rpm) Rated Speed
243
-
最高转速(rpm) Max Speed
972
-
额定容许力矩(gf.cm) Max rated torque
250
-
瞬间容许力矩(gf.cm) Max instant torque
600
-
减速比 Reduction ratio
30.86
-
减速箱长L1(mm) Length
12.1
-
总长L(mm) Overrall Length
26.1
型号(Model):ZWBPD006006-41
-
额定转速(rpm) Rated Speed
181
-
最高转速(rpm) Max Speed
726
-
额定容许力矩(gf.cm) Max rated torque
250
-
瞬间容许力矩(gf.cm) Max instant torque
600
-
减速比 Reduction ratio
41.33
-
减速箱长L1(mm) Length
12.1
-
总长L(mm) Overrall Length
26.1
型号(Model):ZWBPD006006-110
-
额定转速(rpm) Rated Speed
68
-
最高转速(rpm) Max Speed
271
-
额定容许力矩(gf.cm) Max rated torque
250
-
瞬间容许力矩(gf.cm) Max instant torque
600
-
减速比 Reduction ratio
110.6
-
减速箱长L1(mm) Length
14.5
-
总长L(mm) Overrall Length
28.5
型号(Model):ZWBPD006006-148
-
额定转速(rpm) Rated Speed
51
-
最高转速(rpm) Max Speed
203
-
额定容许力矩(gf.cm) Max rated torque
250
-
瞬间容许力矩(gf.cm) Max instant torque
600
-
减速比 Reduction ratio
148.1
-
减速箱长L1(mm) Length
14.5
-
总长L(mm) Overrall Length
28.5
型号(Model):ZWBPD006006-198
-
额定转速(rpm) Rated Speed
38
-
最高转速(rpm) Max Speed
151
-
额定容许力矩(gf.cm) Max rated torque
250
-
瞬间容许力矩(gf.cm) Max instant torque
600
-
减速比 Reduction ratio
198.4
-
减速箱长L1(mm) Length
14.5
-
总长L(mm) Overrall Length
28.5
型号(Model):ZWBPD006006-266
-
额定转速(rpm) Rated Speed
28
-
最高转速(rpm) Max Speed
113
-
额定容许力矩(gf.cm) Max rated torque
250
-
瞬间容许力矩(gf.cm) Max instant torque
600
-
减速比 Reduction ratio
265.7
-
减速箱长L1(mm) Length
14.5
-
总长L(mm) Overrall Length
28.5
型号(Model):ZWBPD006006-531
-
额定转速(rpm) Rated Speed
14
-
最高转速(rpm) Max Speed
57
-
额定容许力矩(gf.cm) Max rated torque
250
-
瞬间容许力矩(gf.cm) Max instant torque
600
-
减速比 Reduction ratio
530.8
-
减速箱长L1(mm) Length
16.9
-
总长L(mm) Overrall Length
30.9
型号(Model):ZWBPD006006-711
-
额定转速(rpm) Rated Speed
11
-
最高转速(rpm) Max Speed
42
-
额定容许力矩(gf.cm) Max rated torque
250
-
瞬间容许力矩(gf.cm) Max instant torque
600
-
减速比 Reduction ratio
711.0
-
减速箱长L1(mm) Length
16.9
-
总长L(mm) Overrall Length
30.9
型号(Model):ZWBPD006006-952
-
额定转速(rpm) Rated Speed
8
-
最高转速(rpm) Max Speed
32
-
额定容许力矩(gf.cm) Max rated torque
250
-
瞬间容许力矩(gf.cm) Max instant torque
600
-
减速比 Reduction ratio
952.2
-
减速箱长L1(mm) Length
16.9
-
总长L(mm) Overrall Length
30.9
型号(Model):ZWBPD006006-1275
-
额定转速(rpm) Rated Speed
6
-
最高转速(rpm) Max Speed
24
-
额定容许力矩(gf.cm) Max rated torque
250
-
瞬间容许力矩(gf.cm) Max instant torque
600
-
减速比 Reduction ratio
1275.2
-
减速箱长L1(mm) Length
16.9
-
总长L(mm) Overrall Length
30.9
型号(Model):ZWBPD006006-1708
-
额定转速(rpm) Rated Speed
4
-
最高转速(rpm) Max Speed
18
-
额定容许力矩(gf.cm) Max rated torque
250
-
瞬间容许力矩(gf.cm) Max instant torque
600
-
减速比 Reduction ratio
1707.9
-
减速箱长L1(mm) Length
16.9
-
总长L(mm) Overrall Length
30.9
